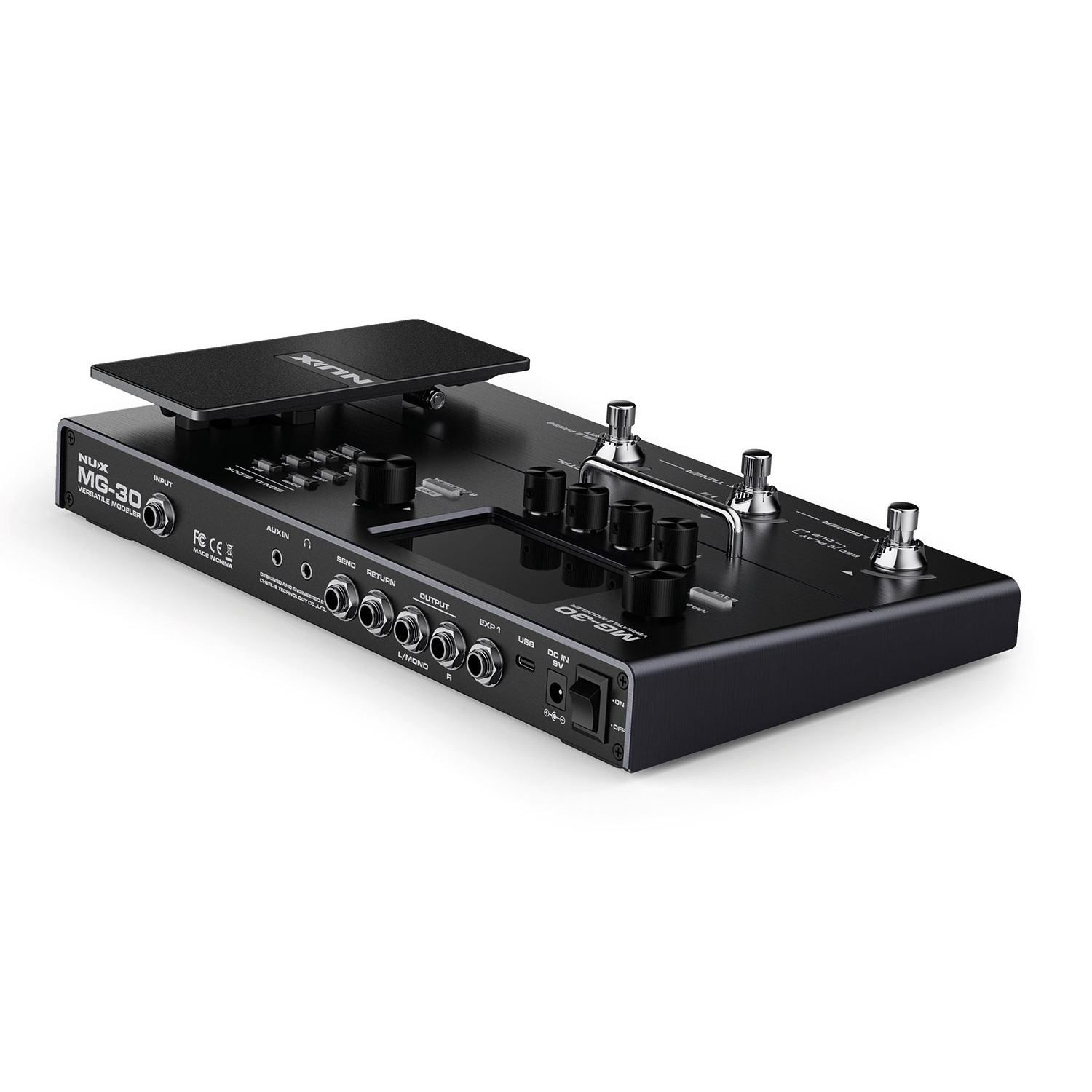

NUXMG-30 Multi-Effects Modeller Pedal

The NuX MG-30 is the flagship modelling effect processor in the NuX range. Dual high speed processing offers accurate modelling of 30 different amplifier options, including bias tweaking for an extra dimension of response adjustment, all using the proprietary NuX TSAC-HD algorithm.

Impulse response programming presents a choice of 8 guitar cabinets, 8 bass cabinets, 8 microphones in 3 different axis positions and even 3 acoustic guitar emulation profiles. Once the main guitar tone is programmed, there are 8 effects blocks which can be assigned to different positions in the signal chain, including WAH, CMP, GATE, EFX, EQ, MOD, DLY & RVB.

£299.00

Out of stock

Description

NuX – Quality Gear at Affordable Prices

The NuX MG-30 is the flagship modelling effect processor in the NuX range. Dual high speed processing offers accurate modelling of 30 different amplifier options, including bias tweaking for an extra dimension of response adjustment, all using the proprietary NuX TSAC-HD algorithm.

Impulse response programming presents a choice of 8 guitar cabinets, 8 bass cabinets, 8 microphones in 3 different axis positions and even 3 acoustic guitar emulation profiles. Once the main guitar tone is programmed, there are 8 effects blocks which can be assigned to different positions in the signal chain, including WAH, CMP, GATE, EFX, EQ, MOD, DLY & RVB.

An expression pedal covers wah and swell effects amongst other possibilities. Each has modes and/or parameters which can be adjusted and saved within the patch as needed. Real-time editing uses rotary encoders and switches, making for a natural and organic process and all prameters and graphics are displayed on a vibrant 4″ colour display. Add to this a fully functioning USB audio interface, phrase looper, PC/Mac editor/librarian/updater, aux input, effects loop, drum machine and NMP-2 footswitch control and the MG-30 covers practically all bases.

This unit provides all the processing power and audio quality that could be asked from any professional guitar processor at a fraction of the price of its component features.

Includes 9Vdc UK power adaptor.

Check out our full range of guitar effects!

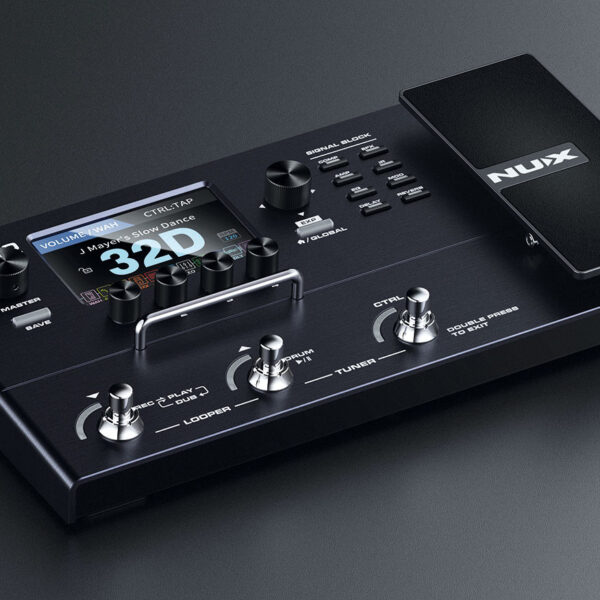

NuX MG-30 Multi-Effects Modeller Pedal - Promo
The Specs
  • 4″ colour LCD display
  • Multi-function rotary & navigation controls
  • High definition amplifier models
  • Impulse response models for cabinets, microphones and acoustic emulation
  • 8 distinct effect blocks with editable signal chain positions
  • Built-in USB audio interface, editor/librarian and updater
  • Built-in drum machine and phrase looper (up to 60secs)
  • Assignable and adjustable expression pedal
  • Ultra-low latency from dual NXP RT processors
  • NMP-2 footswitch included for remote control

Find out more about this multi-effects pedal on the NuX website!

NuX MG-30 Multi-Effects Modeller Pedal - Front

Additional information

Weight 1.5 kg
Dimensions 31.3 × 16.6 × 5.4 cm
Power Supply

9Vdc, 400mA pin-negative (adaptor included)

Inputs

6.3mm jack (guitar), 3.5mm jack (aux input)

Outputs

2 x 6.3mm jack (L/mono + R) to amp or mixer

Sends : Returns

6.3mm jack send (1k ohm) & return (220k ohm)

Headphone Output

3.5mm stereo jack

USB Port

USB type-C for audio interface, PC/Mac editing & updating

Remote Control Connection

EXP1 TRS 6.3mm jack

Sampling Format

48kHz, 32-bit

Frequency Response

20Hz – 20kHz (±1dB)

Input Impedence

1M ohm

Output Impedence

1k ohm

Dynamic Range

110dB

Dimensions

230 x 160 x 58mm
